Material

How to create a Material entry:

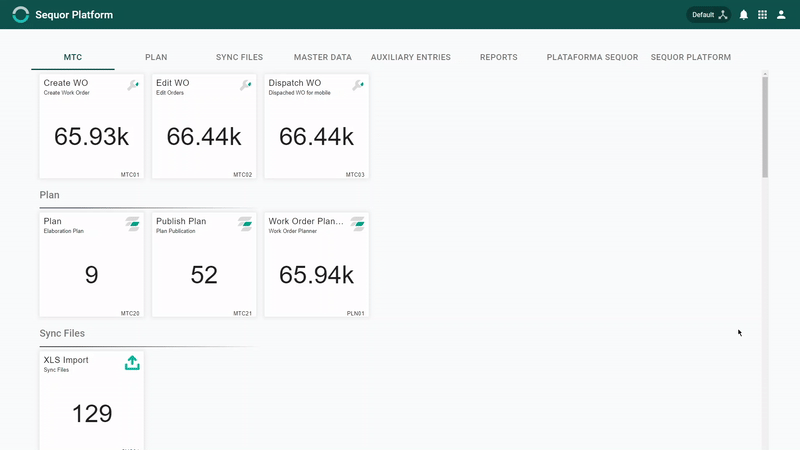

After accessing the Sequor MTC Material Management app, the user will enter the Grid / List mode, which lists all equipment entrys, giving the user the possibility to create a new entry or edit an existing one. To Create, click on the button and then fill in the fields:

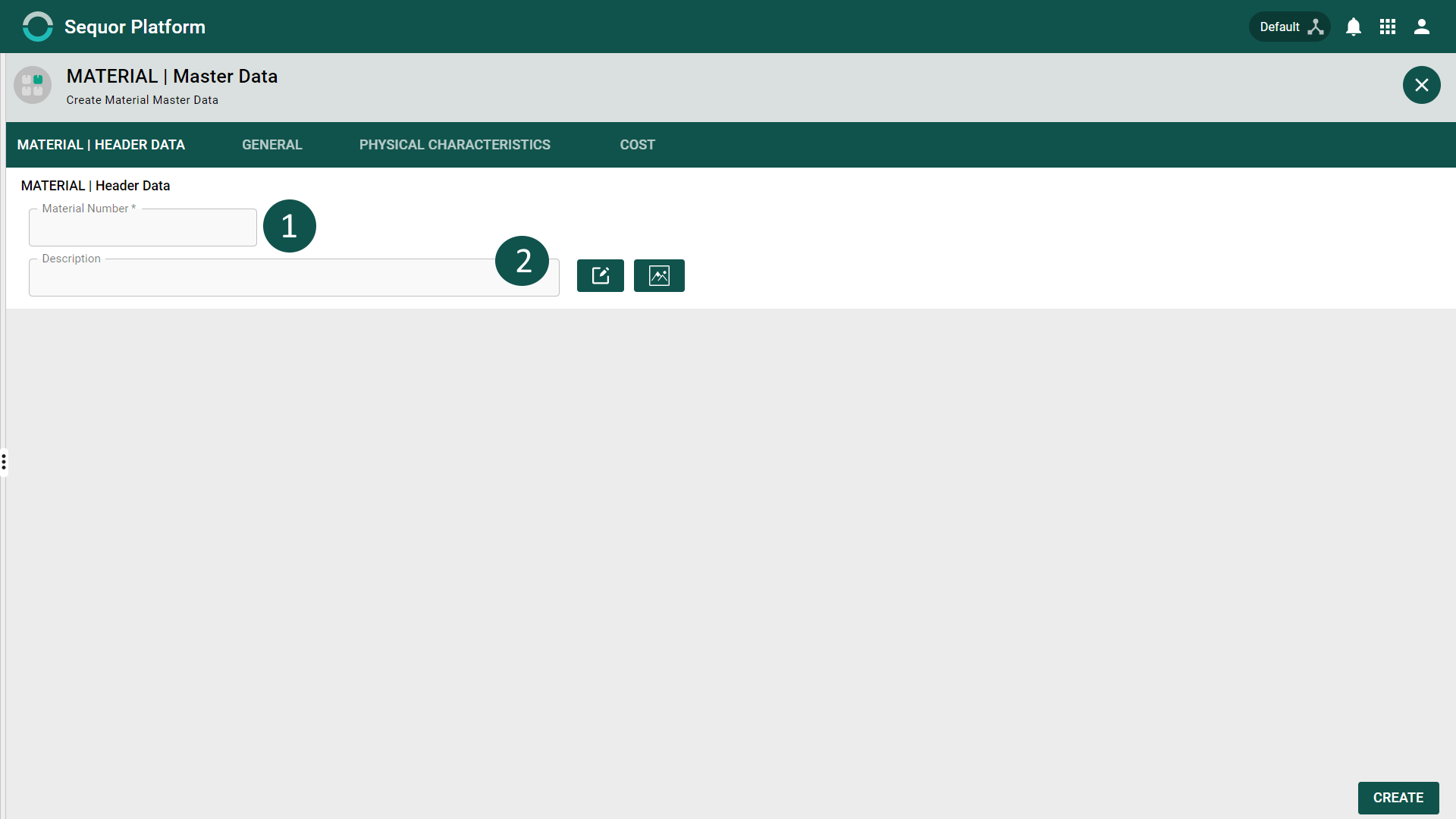

In the Header:

• 1 - Material Number*,
• 2 - Material Description.

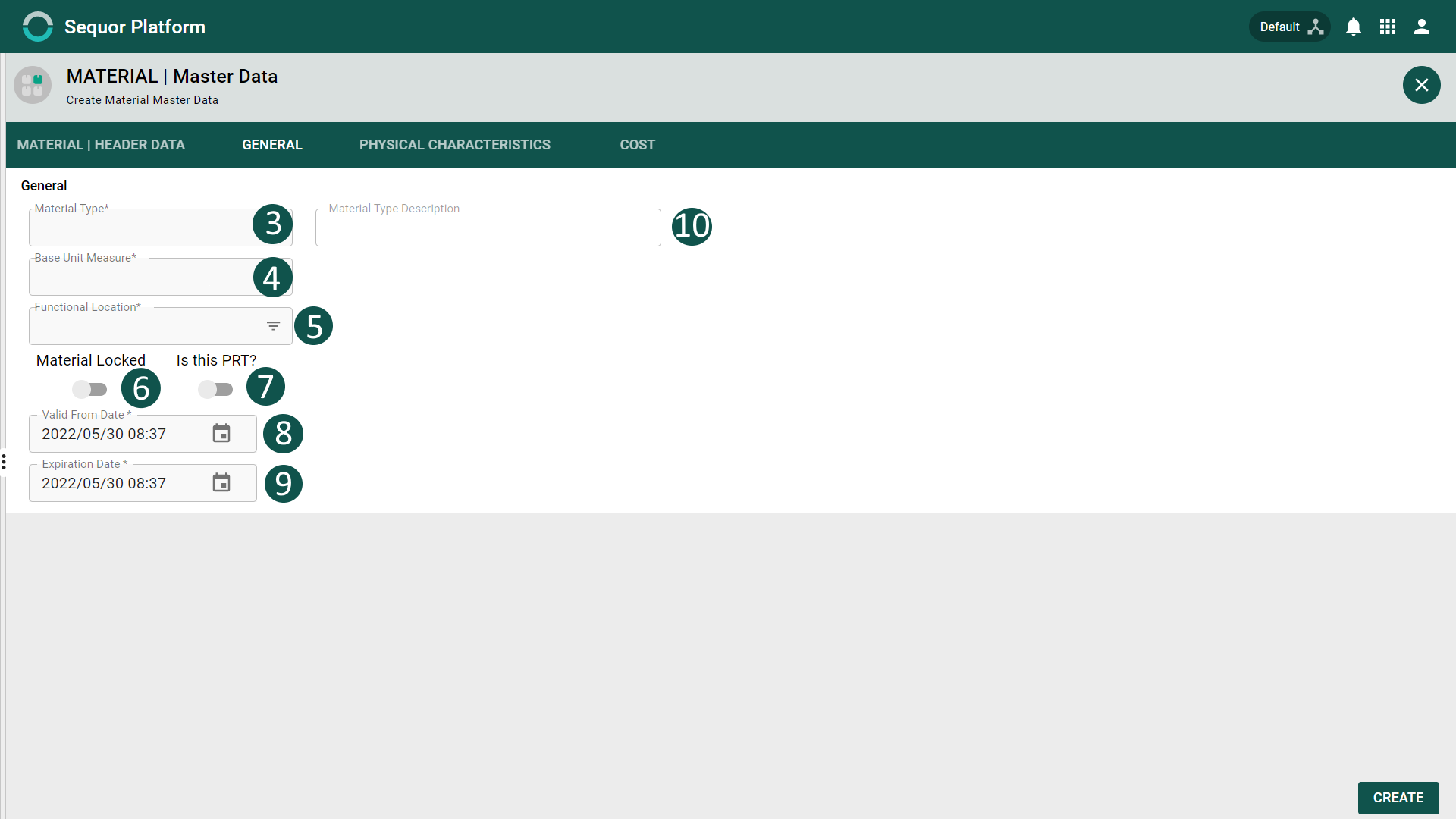

On the General tab:

• 1 - Type of Material
• 2 - Basic Unit of Measure
• 3 - Functional Location
• 4 - select whether the material is blocked or not
• 5 - select the material is PRT (Resource or Productive Tool) or not,
• 6 - insert a Long Description,
• 7 - select the date for the valid field from,
• 8 - select the Expiration date.

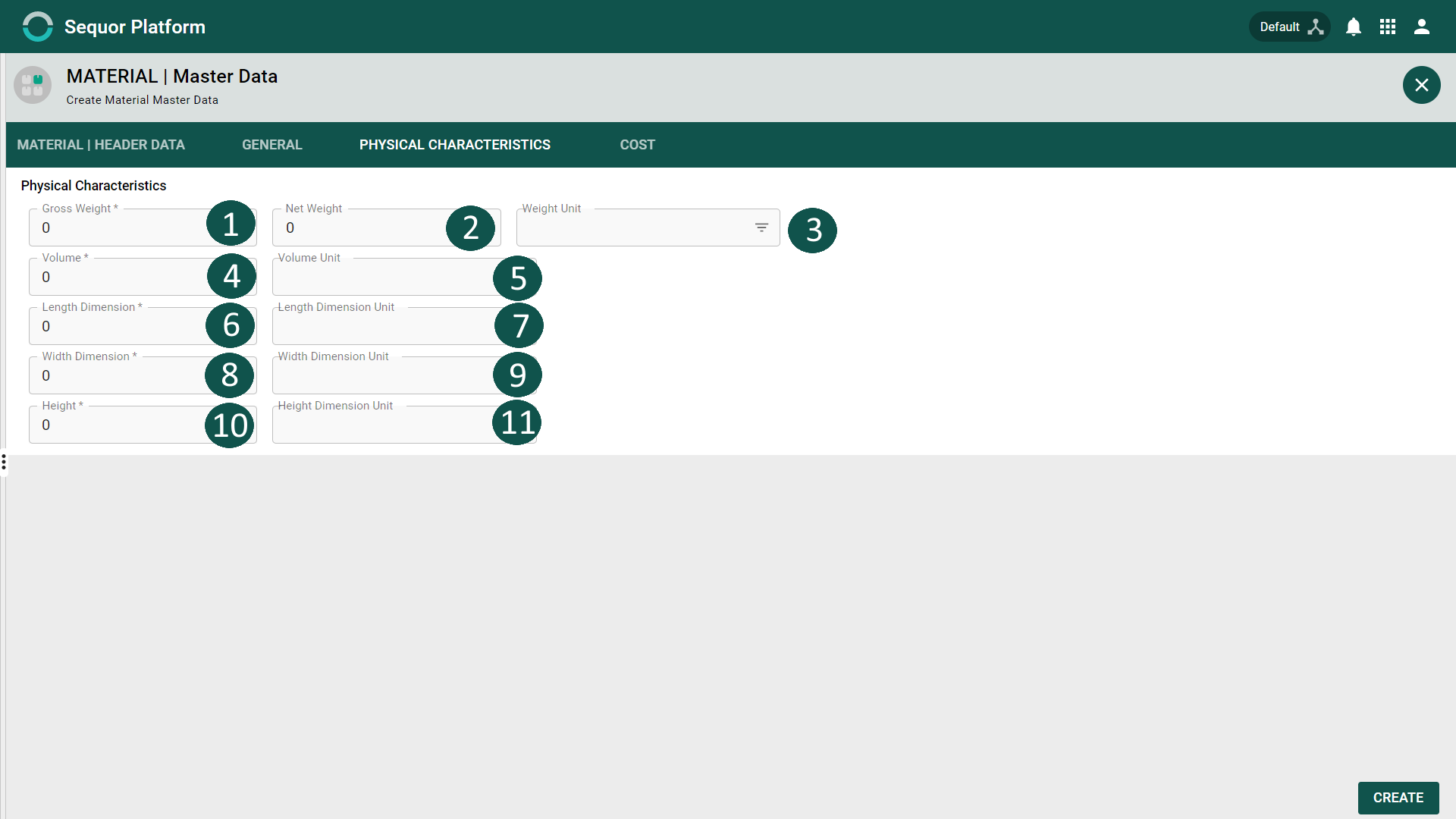

On the Physical Characteristics tab:

• 1 - Gross Weight,
• 2 - Net Weight,
• 3 - Weight Unit,
• 4 - Volume,
• 5 - Volume Unit,
• 6 - Length,
• 7 - Length Unit,
• 8 - Width,
• 9 - Width Unit,
• 10 - Height
• 11 - Height Unit

On the Cost tab:

• 1 - Price
• 2 - Weight Unit

note

Items with * are required.

How to edit a material entry:

After accessing the Sequor MTC Materials Management app, the user will enter Grid/List mode, which lists all equipment entrys, giving the user the ability to create a new entry or edit an existing one.

To Edit the entry:

• 1 - select the desired entry by clicking on the respective check box ,
• 2 - click the button and edit the possible fields. It is possible to redefine here whether or not the equipment is a PRT (Tool and Productive Resource).

Material registration entry

general guide

In the general guide, the user will be able to access all the main information of the Material register.

Nr.	Field	Description	Example
	Material code	Insert material code	MAT0001
	Material Description	Insert material description	Oil Filter
	Type of material	Select material type	MTYP012
	Material Type Description	Auto-filled when selecting material type	Consumables
	Unit of measure	Select material unit of measure	Part
	Disabled	Select if material is disabled	Y/N
	Blocked	Select if material is locked	Y/N
	It's PRT	Select if the material is a PRT	Y/N
	Long Description	Insert the long description (using the Draft component)
	Expiration start date	Enter material validity start date	04/08/2021
	Expiration date	Enter material expiration date	10/20/2030

This

When marked!

Disabled Material or Blocked Material will make the entry unavailable for use in future movements in the system.

IS PRT will make the entry available to be selected as a PRT (Production Resource Tool) in the Order Management program.

Physical Characteristics Guide

In the physical characteristics guide, the user will find all the physical information about the material. This guide is important as it provides information for various processes such as packaging, addressing and shipping.

Nr.	Field	Description	Example
	Material number	Enter material number	MAT0001
	Description of material	Insert material description	Oil Filter
	Gross weight	Enter Gross Weight	240
	Net weight	Enter net weight	180
	Weight Unit	Select the unit of measure for weight	Kg
	Volume	Enter material volume	10
	Volume Unit	Select the volume measurement unit	M³
	Length	Insert material length	10
	Length Dimension Unit	Select the length dimension unit of measure	M
	Width	Enter material width	500
	Width Dimension Unit	Select the unit of measure for the width dimension	Cm
	Height	Enter material height	2
	Height Dimension Unit	Select the height dimension unit of measure	M

Cost Guide

Cost is the guide to enter or edit the unit cost of material, this information will be provided for various processes.

Nr.	Field	Description	Example
	Material number	Insert material number	MAT0001
	Description of material	Insert material description	Oil Filter
	Price	Insert material price value	285.97
	Price unit	Select material price unit of measure	USD

note

Changed price value will be used for next moves, it will not change historical data.
