Beginning on IOTHub

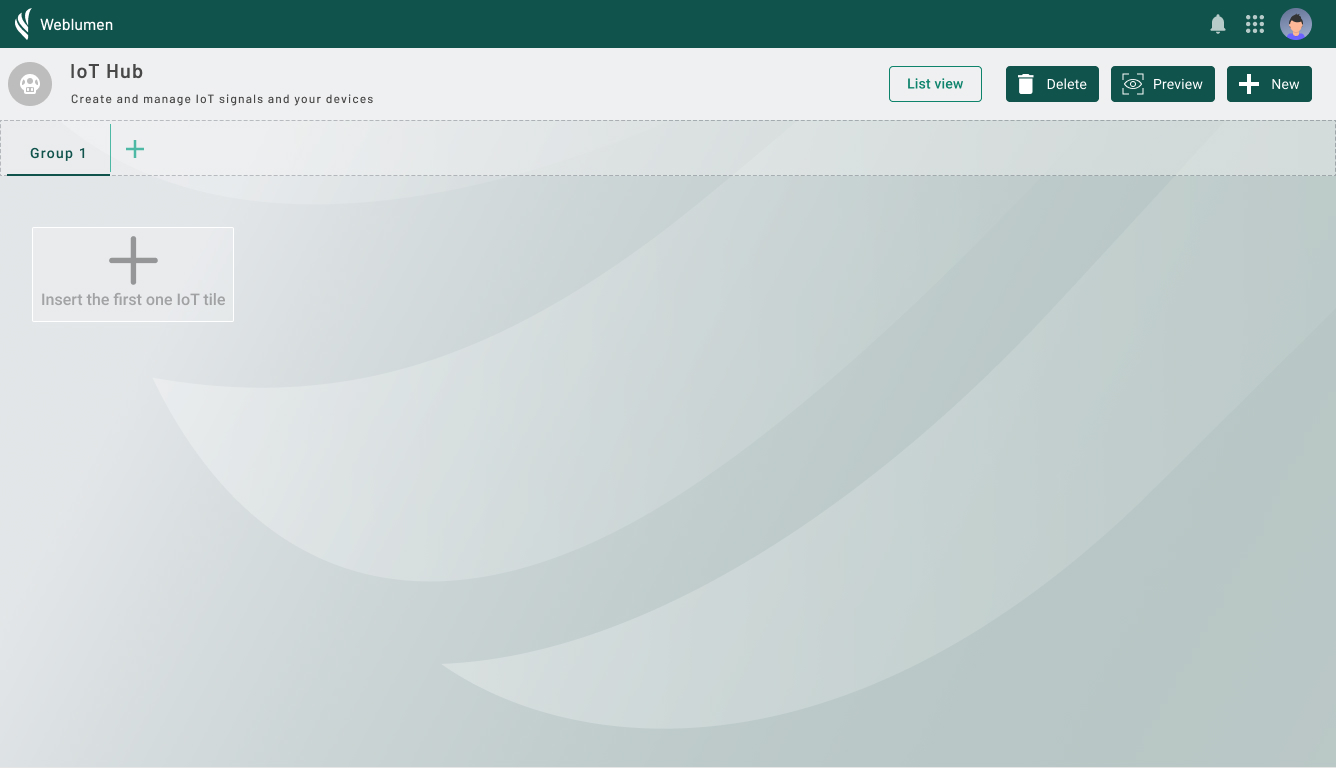

What you willl see when starting for the first time on IoTHub it is a clean screen with a single tile calling for “Insert the first IoT Tile”, like that


Adding the first IoT Tile​

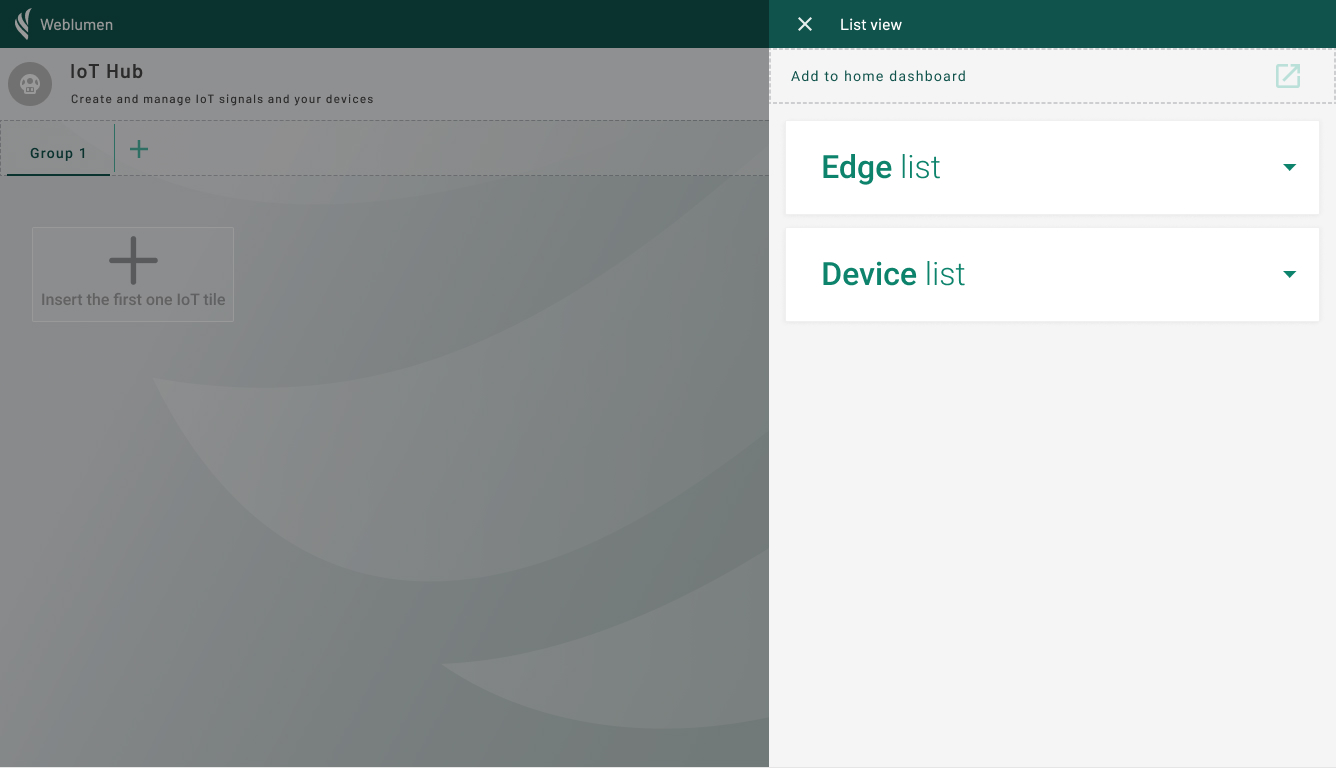

You need to Push tile “Insert First Tile” or use the ListView button, on Main Header, to open the List View menu. On ListView menu you will two expansively options:

EDGE list
Device lis


Expanse the Device List menu​

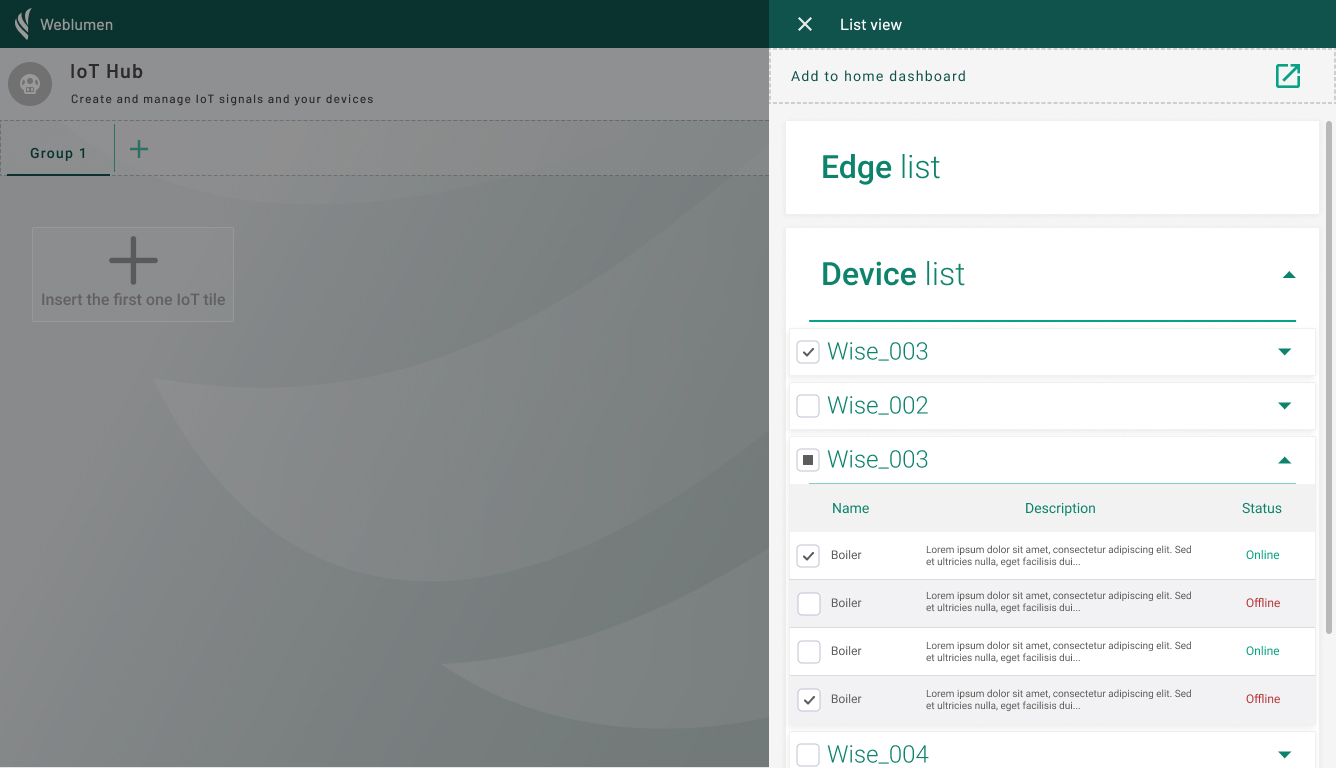

How shown in the next image, with Device List expanded you are ready to choose which Device and its signals you want to become in tiles on the home of IoTHub, choosing through checkboxes on the list.


Sending items as tile for home​

After choosing which Devices and Signals you want to send for IoT Hub Home as tile, confirm it using the button on the header of the ListView.

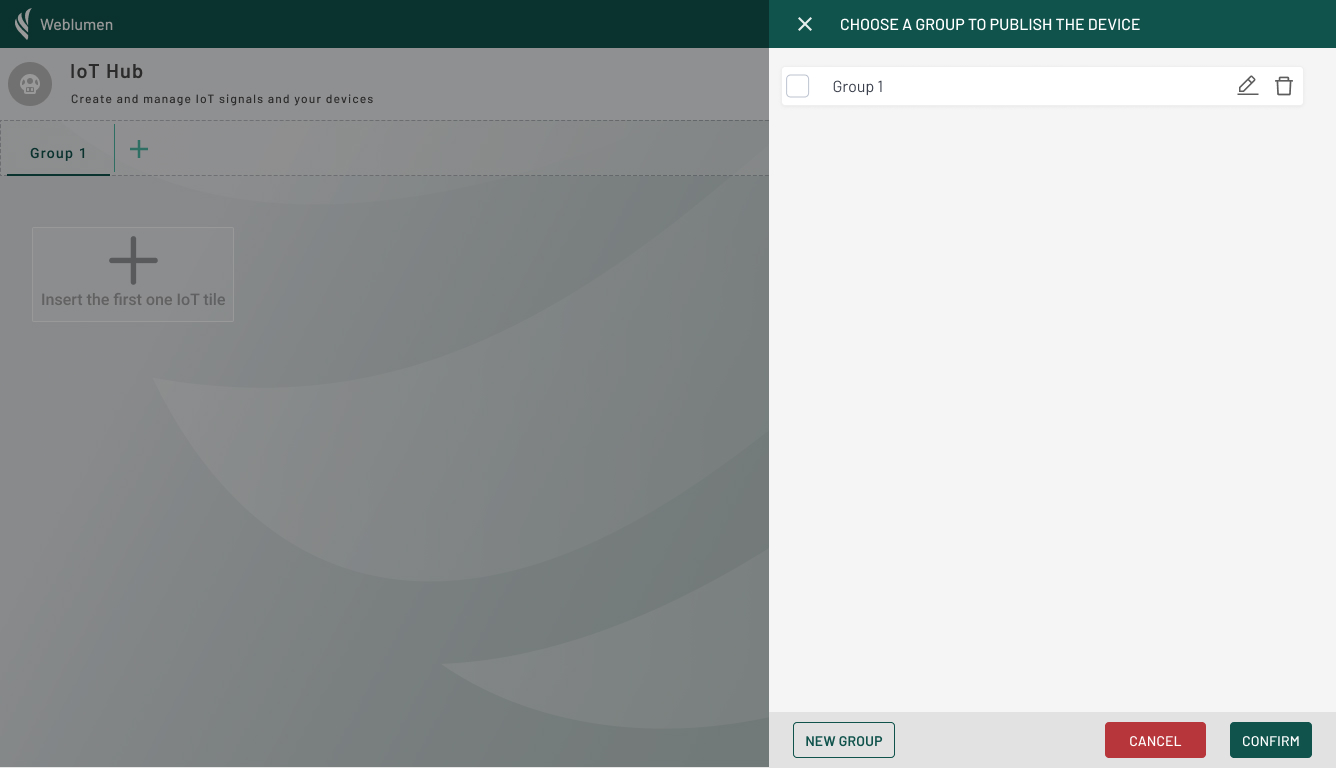

To conclude, the final step it is chosen which group will be shown.



Push the Confirm button on the footer bar to complete and close this flow to insert the tile on Dashboard Home of Weblumen IoTHub.

note

The same flow can be used to insert new tiles on the dashboard at any moment.
