Equipment

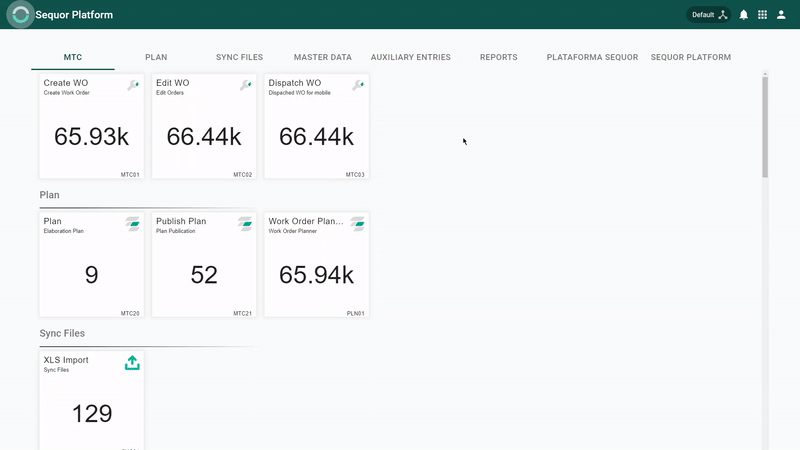

How to create an equipment entry:

After accessing the Sequor Equipment Management app, the user will enter the Grid / List mode, which lists all equipment records, giving the user the possibility to create a new entry or edit an existing one. To Create, click on the button and then fill in the fields:

How to create an equipment entry:

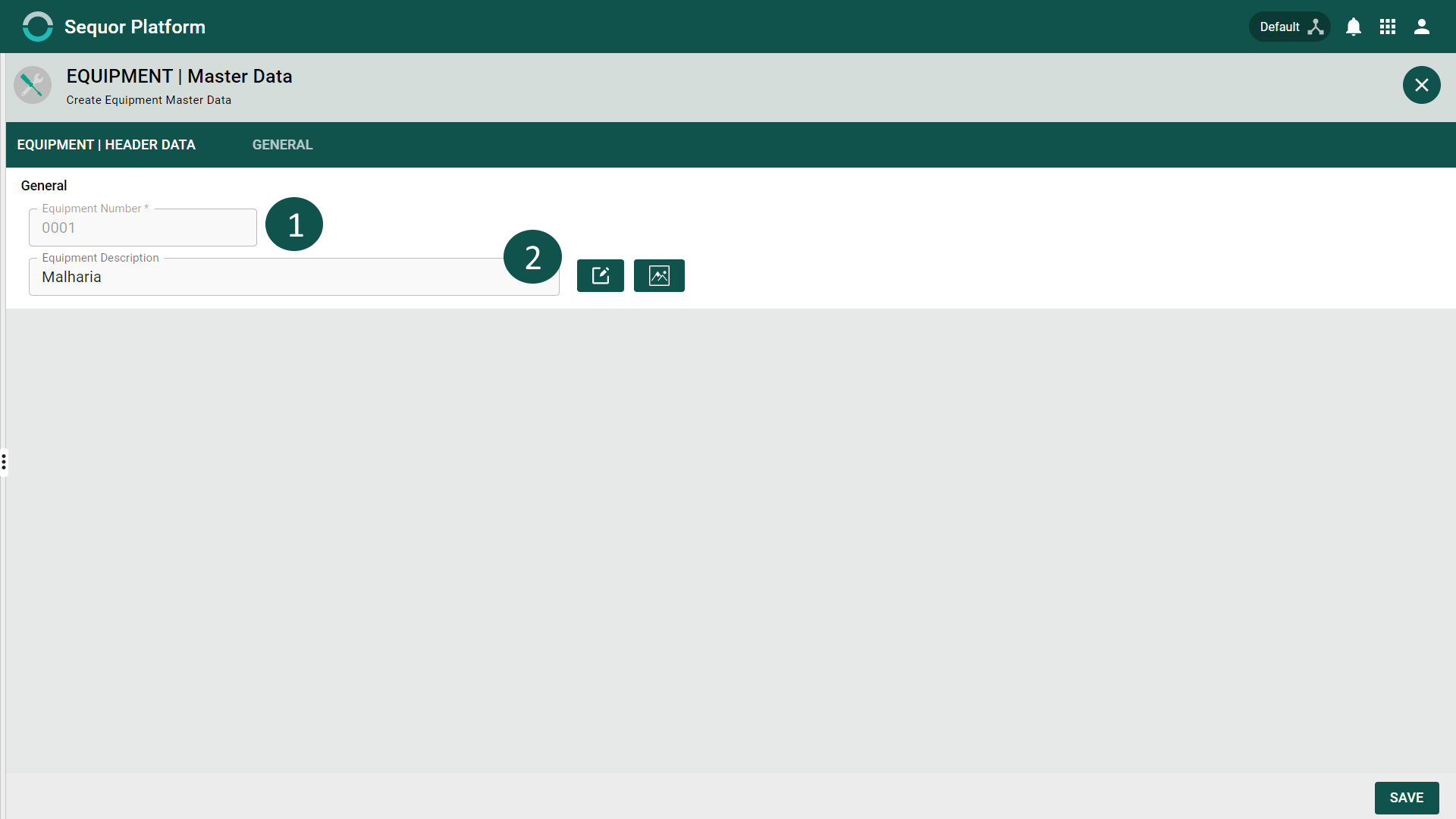

• 1 - Equipment Number *,
• 2 - Description of the Equipment,
• 3 - Equipment Category Code*,
• 4 – Through the switch-type button, it is possible to define here whether the equipment is or is not a PRT (Tool and Productive Resource).

note

Items with * are required.

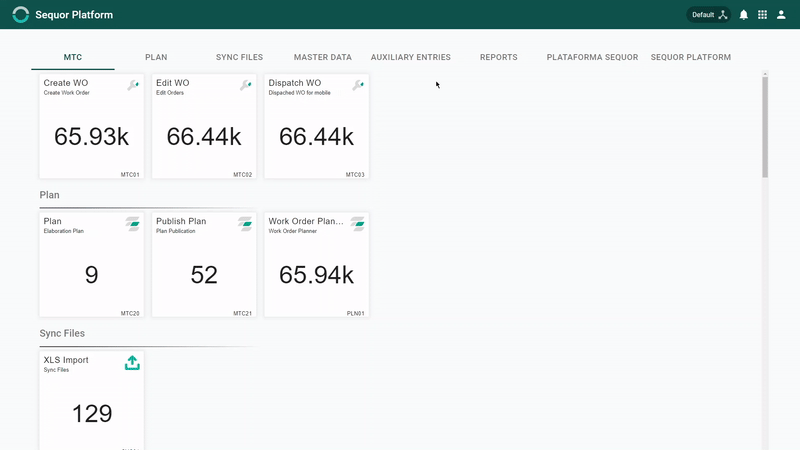

How to edit an equipment entry: After accessing the Sequor Equipment Management app, the user will enter the Grid / List mode, which lists all equipment records, giving the user the possibility to create a new entry or edit an existing one.

To Edit the entry:

• 1 - select the desired entry by clicking on the respective check box ,
• 2 - click on the button and edit the possible fields: Equipment Description, Equipment Category Code *. It is possible to redefine here whether or not the equipment is a PRT (Tool and Productive Resource).

Equipment entry structure

General Guide

In the general Guide the user will find general information about the Equipment entry.

Nr.	Field	Description	Example
	Equipment Number	insert material number	LASER001
	Equipment description	insert Equipment Description	cnc machine
	Equipment Category Code	Equipment Category Code	CAT
	Workcenter	Resource or Productive Tool	Canoas
	Functional Location		Porto Alegre
	Equipment Critically		A
	Is this PRT	Resource or Productive Tool	On / Off
	In DownTime		On / Off
